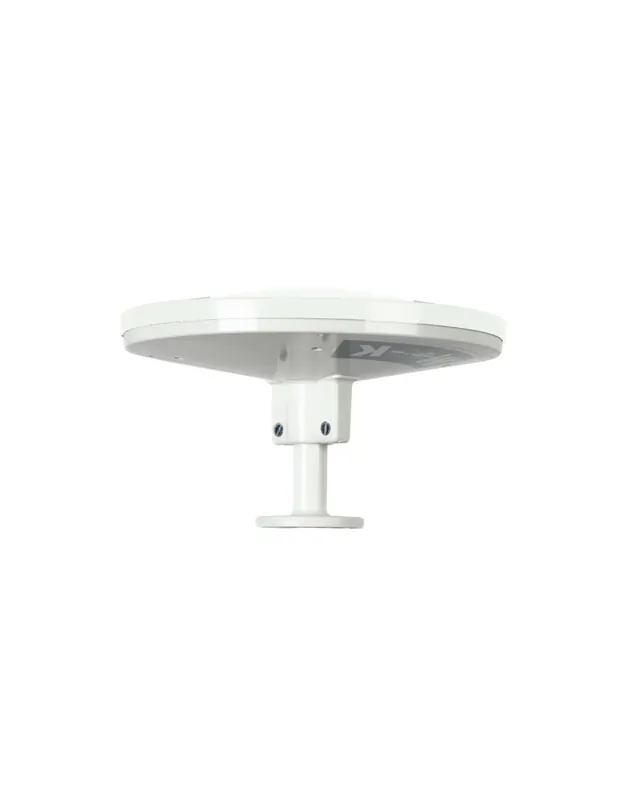

MK Omnidirectional HD DVB-T Antenna – Efficient reception in any direction

The MK omnidirectional antenna is specially designed to effectively receive digital terrestrial television (DTT) signals in high definition. Its technical architecture allows it to pick up channels without the need for manual orientation, making it a practical option for both fixed installations and on the move (caravans, boats, etc.).

Advanced amplification technology

This system integrates amplifiers in both the antenna and the indoor unit, allowing precise gain adjustment from the inside. This adjustment capability ensures clear and stable reception in different signal conditions.

Receiver unit (antenna head)

Type: UHF omni-directional

Gain: 1.5 dB

Frequency: 470-860 MHz

Complete set (with amplifier)

Total gain: up to 31.5 dB

Operating frequency: 470-860 MHz

Compatible with DTT channels: 21 through 69

Dual electrical compatibility

The antenna is equipped for both conventional mains and battery operation, making it ideal for mobile or unplugged environments:

Mains: 230V AC ±10% / 50-60 Hz (with fuse protection)

Power consumption: 5W

Battery: 12V DC (10-15V range)

Consumption: 60mA

Compact and lightweight design

Dimensions: 340 × 290 × 120 mm

Total weight: 1.6 kg

Ideal for:

Motorhomes and campers

Boats and caravans

Homes where installation without manual guidance is required

Areas with variable coverage

With the MK Omnidirectional HD antenna you will enjoy a clear DVB-T signal with easy installation and no alignment worries.

White color
